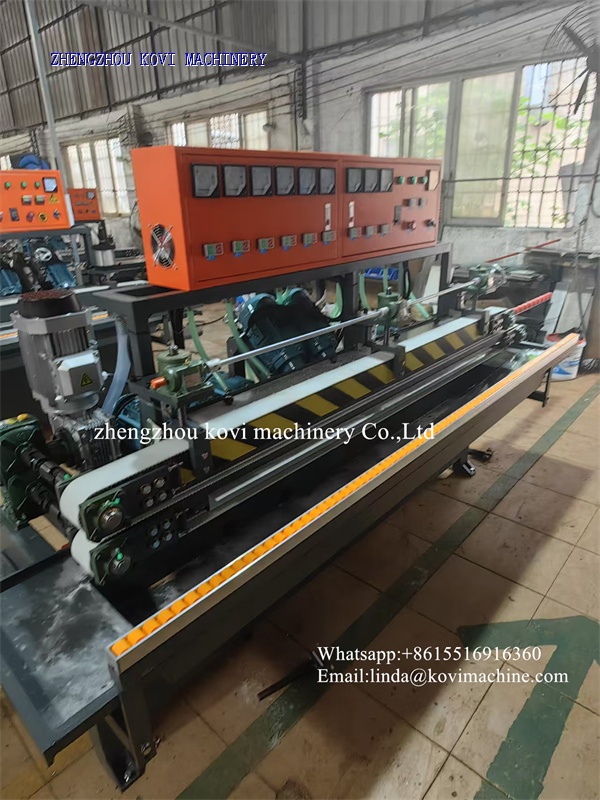

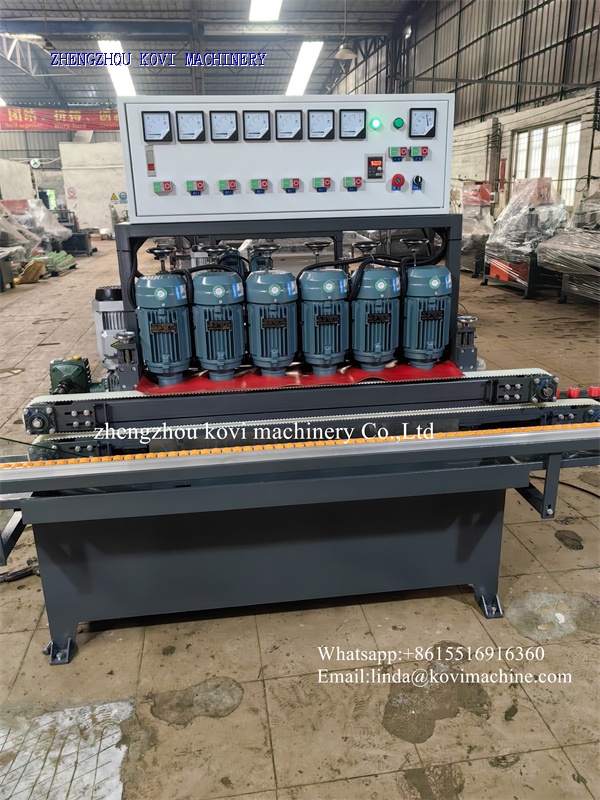

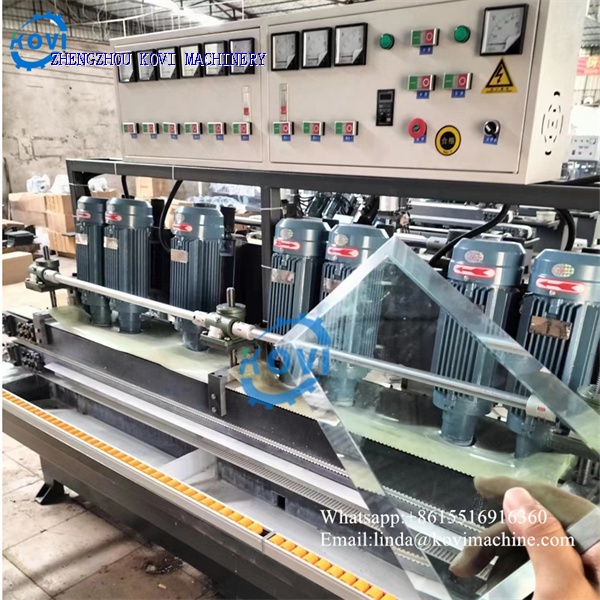

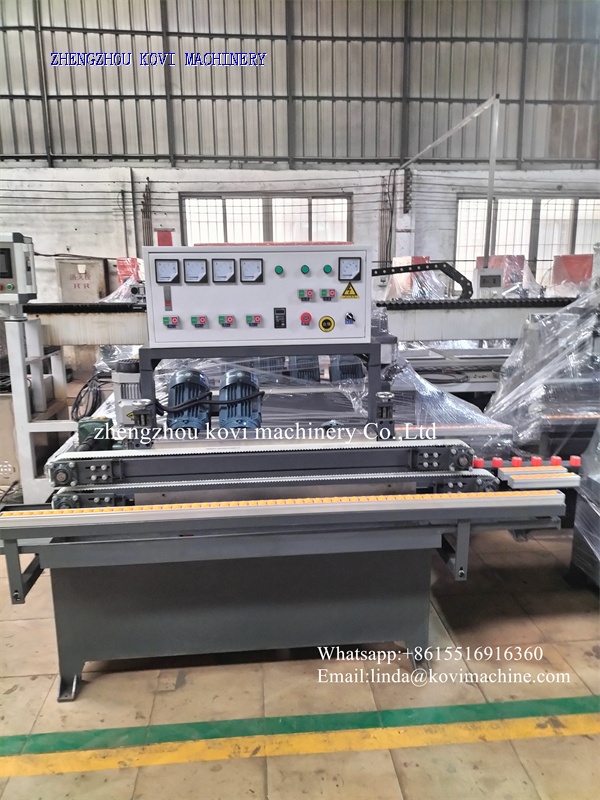

Portable Glass Edging Grinding Polishing Machine 4 Motor Straight Line Mirror Grinding Glass 6 Motor Beveled Edge Polishing Machine

Portable Glass Edging Grinding Polishing Machine 4 Motor Straight Line Mirror Grinding Glass 6 Motor Beveled Edge Polishing Machine

Product No.：202521511322
Price：3200usd
Online Inquiry

Portable Glass Edging Grinding Polishing Machine 4 Motor Straight Line Mirror Grinding Glass 6 Motor Beveled Edge Polishing Machine

1,machine is mainly suitable for the processing of furniture glass, architectural glass and craft glass.portable glass beveling edging corner processing machinery straight line glass mirror edge polishing machine
2, It is mainly used for grinding and polishing the bottom edge and chamfer of ordinary flat glass.
3,Generally have manual, digital display control, PLC computer control and other configurations

Model	KV-BLR03(round edge)	KV-BLX06(beveling edge)	KV-BLZ04(straight edge)
Motor number	3	6	4
Processing thickness	3-6mm	4-20mm	2~20mm
Minimum processing size	40*40mm	40*40mm	40*40mm
Processing speed	0-2.5m/min, adjustable	0-2m/min, adjustable	0~5m/min adjustable
Power	6KW	15.4kw	7.7kw
Voltage	380v/50HZ 3-Phase	380v/50HZ 3-Phase	380v/50hz,3-phase
Machine size	20202000990mm	2200mm9001800mm	2000mmx800mmx1600mm
Machine weight	500kg	1000KG	600kg
