Paper Tube Core Machine Paper Tube Machine Paper Tube Making Machine Automatic

Automatic Kraft Spiral Paper Winding Rolling Core Making Machine Paper Tube Making Machine Toilet Paper Core Production Machinery

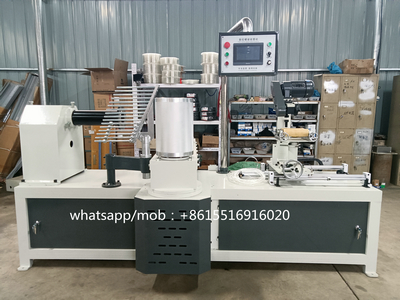

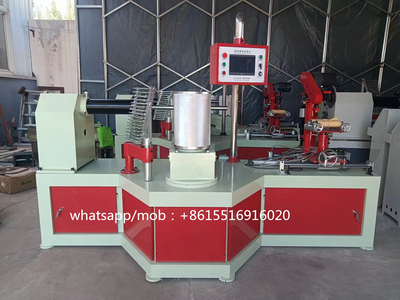

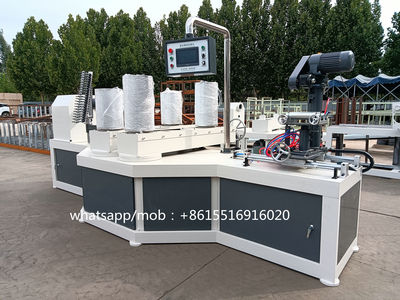

Paper core tube making machine is mainly used for making paper tube.
Automatic Kraft Spiral Paper Winding Rolling Core Making Machine Paper
Tube Making Machine Toilet Paper Core Production Machinery The tubes made can be used as core of toilet paper roll.
We have different model of paper core machine for choice, can make paper tube with different diameter and thickness.

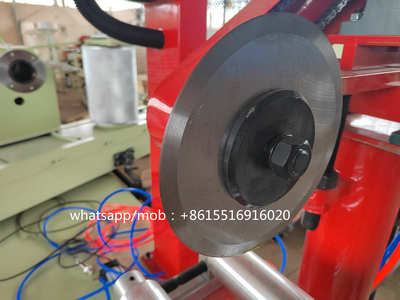

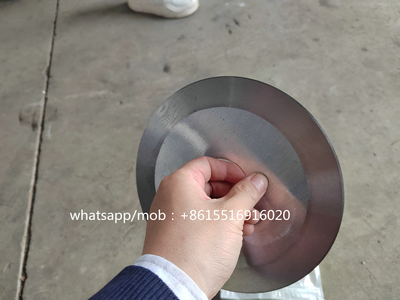

The finished tube can be cut and discharged automatically. Infrared and automatic transmission make cutting length more accurate.

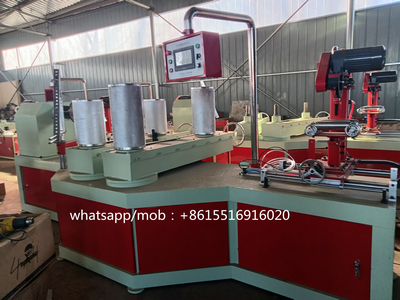

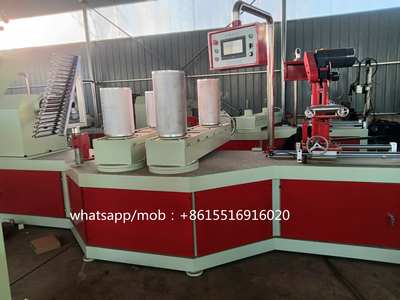

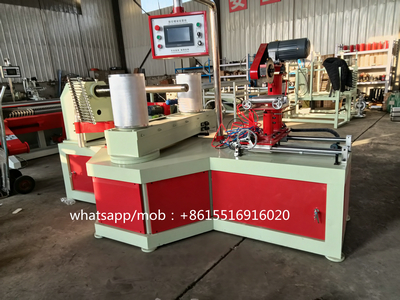

KV4250B Paper Core Tube Making Machine Parameters

Technical parameters		Control system
Number of layers of winding paper	3-21 layers	PLC controller	YES
Maximum coil diameter	250mm	Human-computer interface	Color touch screen
Minimum coil diameter	40mm	Program version	HT/4.0
Maximum coil thickness	15mm	Synchronous control	pneumatic
Minimum coil thickness	1mm	Synchronous tracking pipe cutting system	cylinder
Winding machine head	Four nose double belt	Gluing method	Single/double side gluing
Number of operators	1-2	Speed of coil	3-20 m/min
Machine Size		Equip with equipment

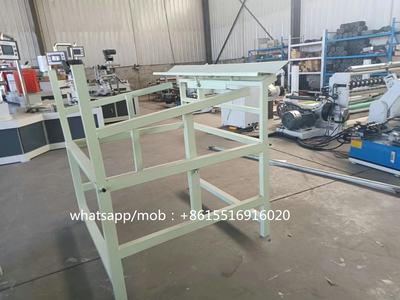

Main machine size	4000mm×2000mm×1950mm	Automatic drop pipe frame	YES
Diameter of wheel hub	269mm	Diagonal of belt	electric
Height of wheel hub	400mm	Type of glue rack	Automatic glue holder with heating system}
Minimum wheel pitch	950mm	Adjustment of tension	Mechanical regulation
