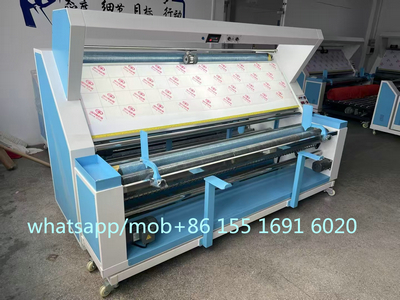

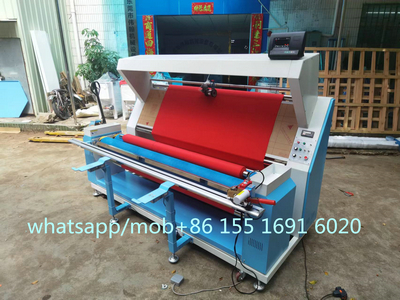

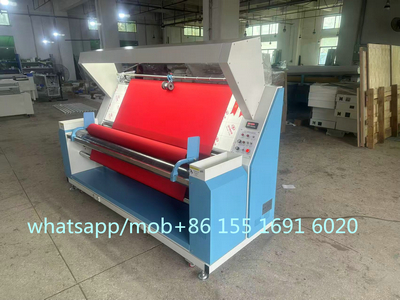

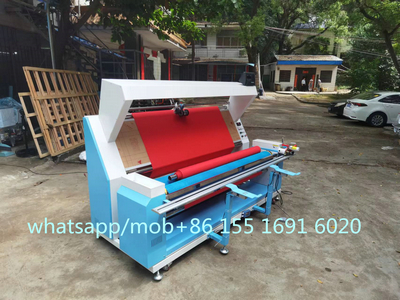

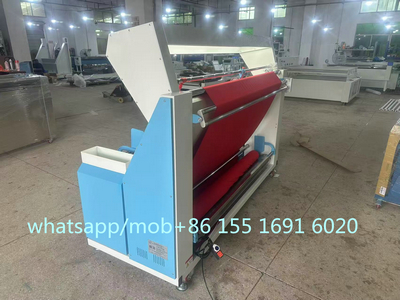

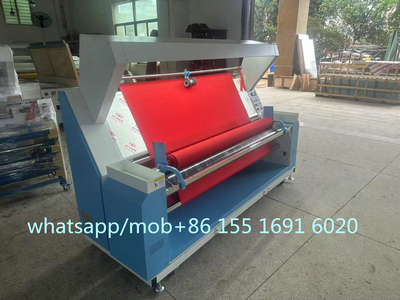

Infrared induction automatic edge alignment fabric inspection machine

1: LED white light source in upper and lower light boxes, upper or lower lights can be controlled separately, which can meet the needs of surface inspection (dirt, color difference) and lining inspection (thread pulling, less thread)

2: Automatic edge alignment can achieve flat alignment of rolled cloth edges (infrared electric eye induction, automatic edge correction and alignment of fabric deviation)

3: With tension adjustment function (can adjust the tension of fabric)

4: Equipped with mechanical counter to accurately measure the length of fabric (accurate to 1 cm)

5: The speed and forward and reverse rotation can be adjusted separately

6: Width ruler (convenient to measure the real-time width of the fabric) and high-quality self-locking foot switch (factory load test 10,000 times)

7: The angle of the fabric inspection table is designed in golden ratio, which is convenient for operators to observe fabric defects and reduce eye fatigue;

8: Default standard drawer box (easy to put tools and label paper) and packaging table (can be used for fabric bagging)

9: With universal wheels (with adjustable support cup feet, can adapt to various uneven ground usage scenarios)

10: Optional fabric cutting machine and weighing table, fabric spreading and flattening wheels

If you need more information, please contact customer service
